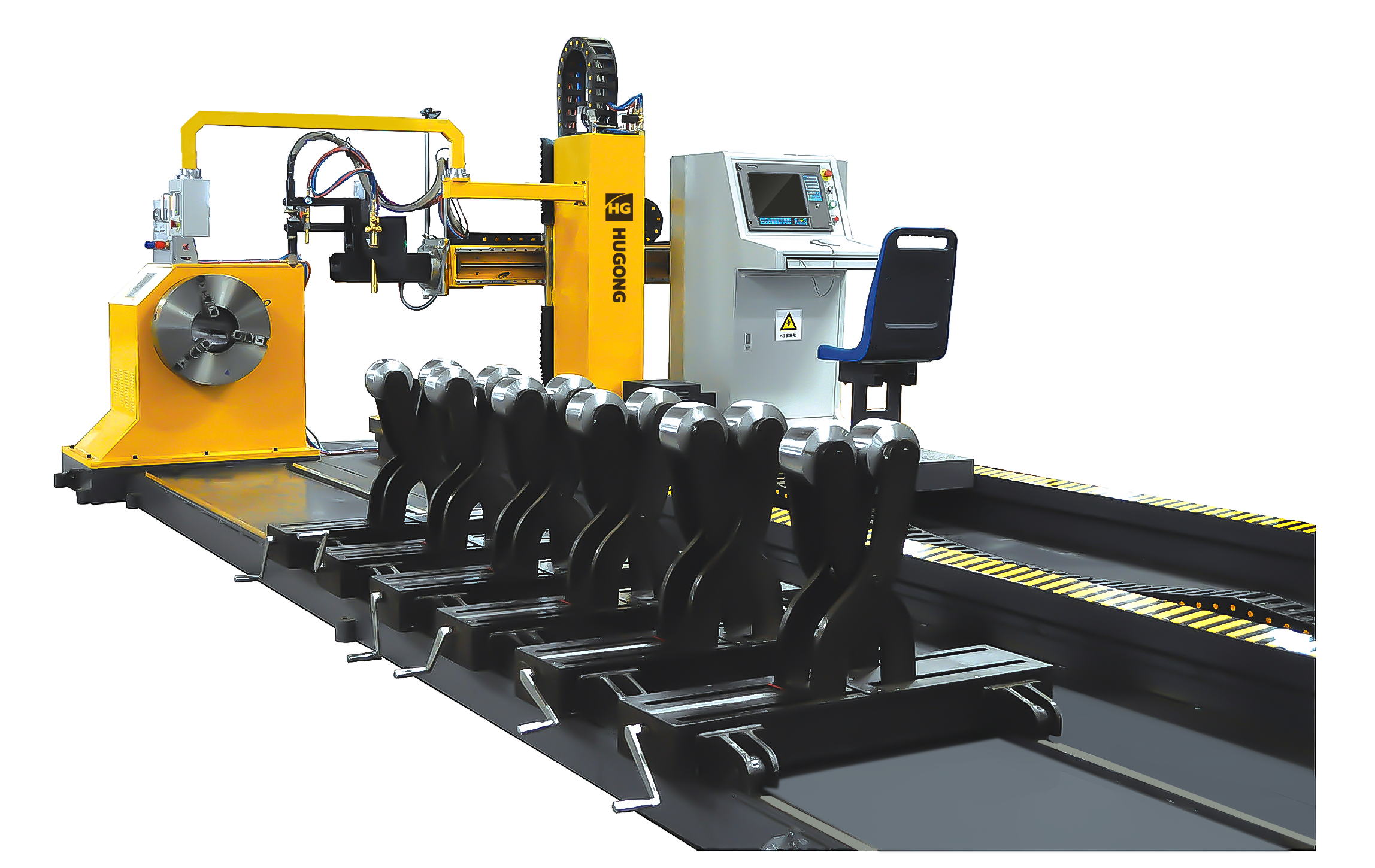

HGPIPE-Ⅳ, Ⅴ, Ⅵ CNC pipe intersection equipment
A professional and economic pipe cutter Easy installation Strong steel structure Friendly interface, easy operation Supply with easy and economic software Flame and Plasma options Portable machine, good for contract based production FreePIPE functions Input existing drawings

TECHNICAL PARAMETER

Model HGPIPE-Ⅳ Ⅴ
Cutting process Plasma, Flame
Input voltage(V,Hz) 110/220/230/240, 220/380/400/415,50/60
Pipe diameter(mm) 60-1200
Pipe length(mm) 3000, 6000, 12000, 20000
CNC controller HG812
Axis 4, or 5, or 6
Motor Servo motor
Positioning accuracy(mm) ±0.5/1000
Repeating accuracy(mm) ±0.2/1000
Positioning speed(mm/min) 6,000
Plasma power source Hypertherm: MAXPRO200, HPR260,XPR300,HPR400
Flame cutting gas Acetylene, Propane, LPG - O2
