• Compact design: trolly, water tank, power source can be combined freely according to your need.
• Simple control with microprocessor.Has the duty cycle and performance needed for tough industrial cutting jobs.
• Comprehensive protecting function: with the protection of overvoltage, under voltage, default phase, against lightning stroke, overcurrent, over heat etc.
• The unique air duct design: failure rate greatly reduced, extending the service life of the machine.
• Unitization design: the machine consists of 4 units-control unit, input unit, inverter unit, output unit. Only need replace the related unit power board for maintenance, any professional debugging is unnecessary.
• With built-in gas regulator which is easier to set the air compressor.
• Adopting high voltage pulse design instead of general high frequency pulse which can smoothly work with CNC control without any interference.

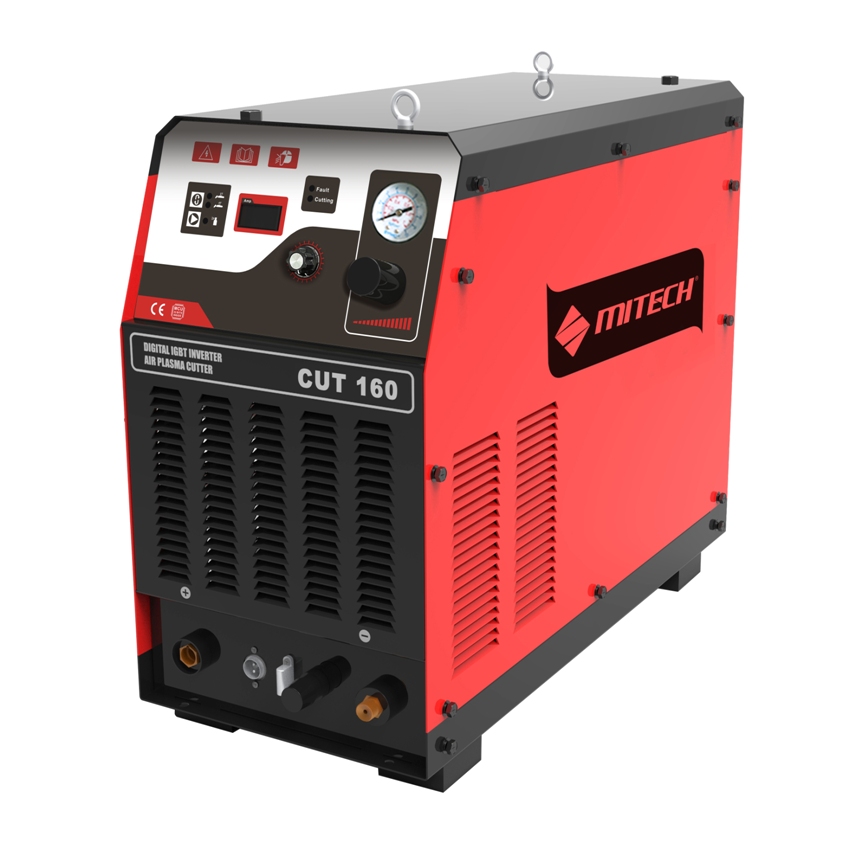

Model |
CUT160 |
|
Adjustment range |
Preset |
Input power voltage(V) |
AC380V±15% 3PH |
Input voltage frequency(HZ) |
50/60 |
Rated input power capacity(KVA) |
29.2 |
|
No-load voltage(V) |
292 |
|
Output current range(A) |
5-160 |
|
Rated output voltage(V) |
144 |
|
Pre-flow(S) |
0.1-5 |
0.2 |
Post-gas(S) |
0-30 |
5 |
Recommended cut capacity(mm) |
45 |
|
Severance capacity(mm) |
60 |
|
Motor generator requirements for full arc stretch at full output(KW) |
60 |
|
Duty cycle(%) |
60%@40℃ |
Weight(KG) |
50 |
|
Dimension(mm) |
622×280×480 |
