MCU control, featured with TIG/MMA/PULSE/COLD WELDING 4 in 1
Outstanding arc stability and welding performance with pulse function,speedy up slope pulse current and down slope pulse current, excellent effect in thin metal sheet.
Versatile with 2T/4T, pre-gas, post-gas, arc ending, VRD etc which is ready for all your need.
5 programs can be saved which is much easier for your fast acess.
Auto-protection against over voltage and over heat

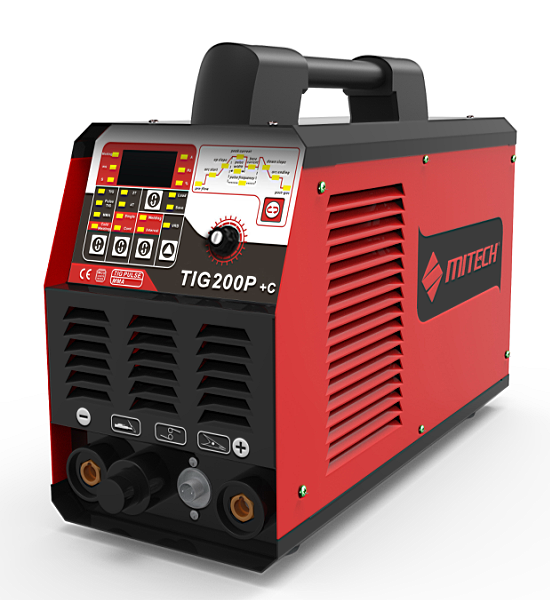

| Model | TIG200P+c | ||
| Item | MMA | TIG | COLD TIG |
| Input Voltage | AC220V+15% 1PH |
||
| Rated input power capacity(KVA) | 6.2 | 4.4 | |
| Rated input current (A) | 28.2 | 20 | |
| No-load voltage(V) | 66 | ||
| Output current range(A) | 30-180 | 10-200 | |
| Rated output voltage（V) | 27.2 | 17.2 | |
| Arc force adjustment(A) | |||
| Post-gas time(S) | 0-1 | ||
| Pre-flow time (S) | 2-9.9 | ||
| Pulse current(A) | 10-200 | ||
| Slope-down time (S) | 0-9.9 | ||
| Pulse frequency (HZ) | 0.1-30 | ||
| Pulse width(%) | 5-90 | ||
| Welding current(ms) | 10-200 | ||
| Welding interval(ms) | 200-999 | ||
| Duty cycle(%) | 60 | ||
| No-load consumption (W) | 60 | ||
| Efficiency（%） | 85 | ||
| Power factor | 0.93 | ||
| Insulation class | F | ||
| Weight(KG) | 6.4 | ||
| Diamension(mm) | 356x153x225 | ||
