MCU control, featured with MIG/MMA 2 in 1.
Non-Synergic/Synergic selection—brings much easier operation with perfect match.
With built-in 4 rolls wire feeder.
With gas /wire selection for more professional use.
With arc ending& spot welding, deep molten puddle, less spatter.
Outstanding stability and performance
Pallet is available for your own need.

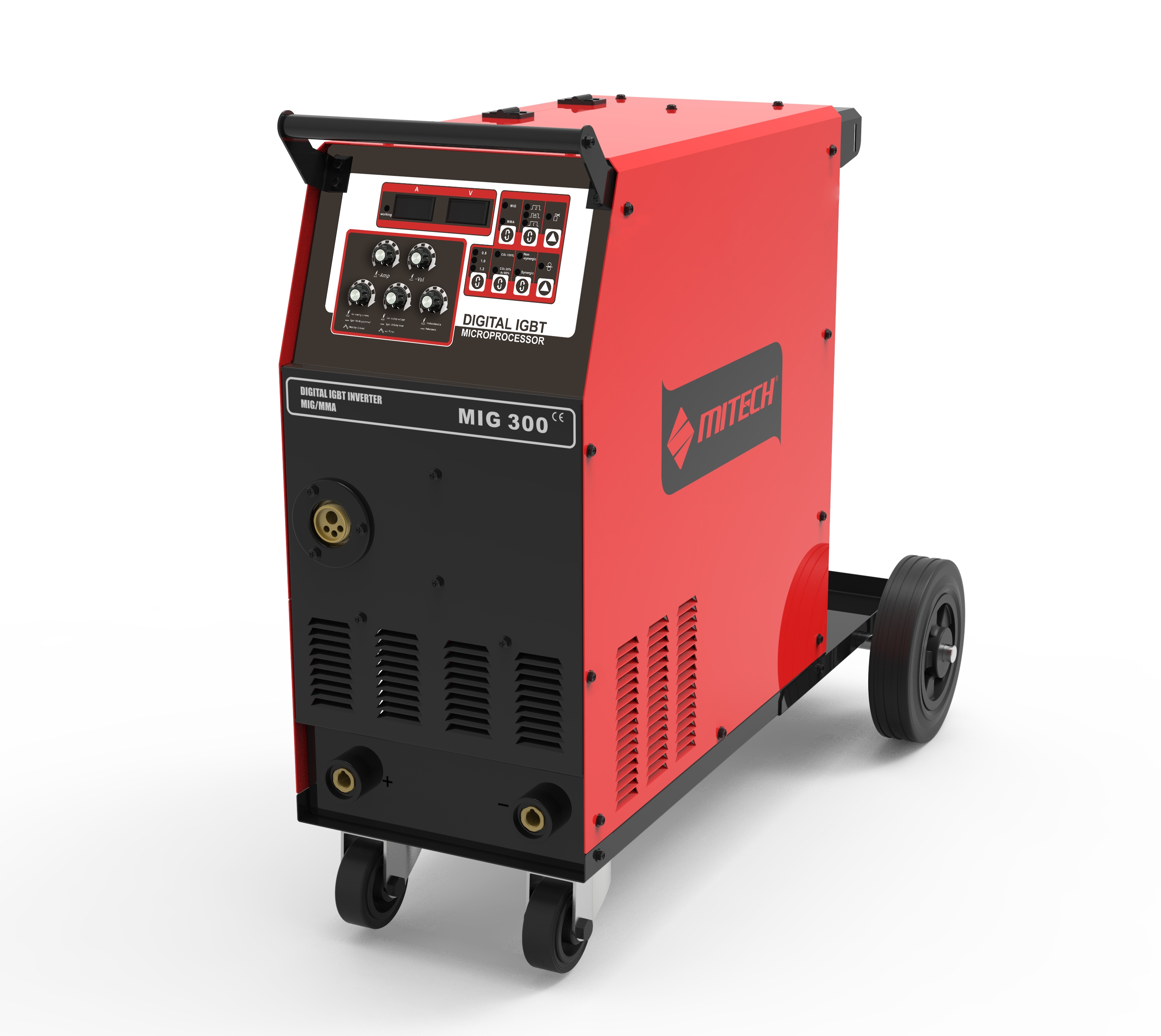

| Model | MIG300 | |
| Item | MIG | MMA |
| Input Voltage | AC380V±15% | |
| Input voltage frequency(HZ) | 50/60 | |
| Rated input power capacity(KVA) | 11 | 12.1 |
| Rated output volatage(V) | 29 | 32 |
| Rated input current(A) | 16.7 | 18.4 |
| Output current range(A) | 20-300 | 20-300 |
| Arc force adjustment range(10A/1) | 0-100 | |
| Spot Welding time | 250ms-5s | |
| Spot welding interval | 150ms-4s | |
| No-load voltage(V) | 60 | |
| Duty cycle(%) | 60 | |
| No-load consumption (W) | 60 | |
| Efficiency（%） | 85 | |
| Power factor | 0.93 | |
| Insulation class | F | |
| Protection class | IP21S | |
| Spool size(mm) | 270-300 | |
| Wire feeding speed | 18m/min | |
| Weight(KG) | 39 | |
| Diamension(mm) | 500*280*580 | |
