Versatile usage of MMA, gas /no gas MIG and lift TIG, workable with 1KG and 5KGS spools.
Synergic control /2T/4T -much smart and easy to operate.
Voltage compensation & Inductance - Ensure much better welding performance.
Deep molten puddle, less spatter, nice welding seam.
With overvoltage, voltage shortage, overheating, over current etc self-production design.

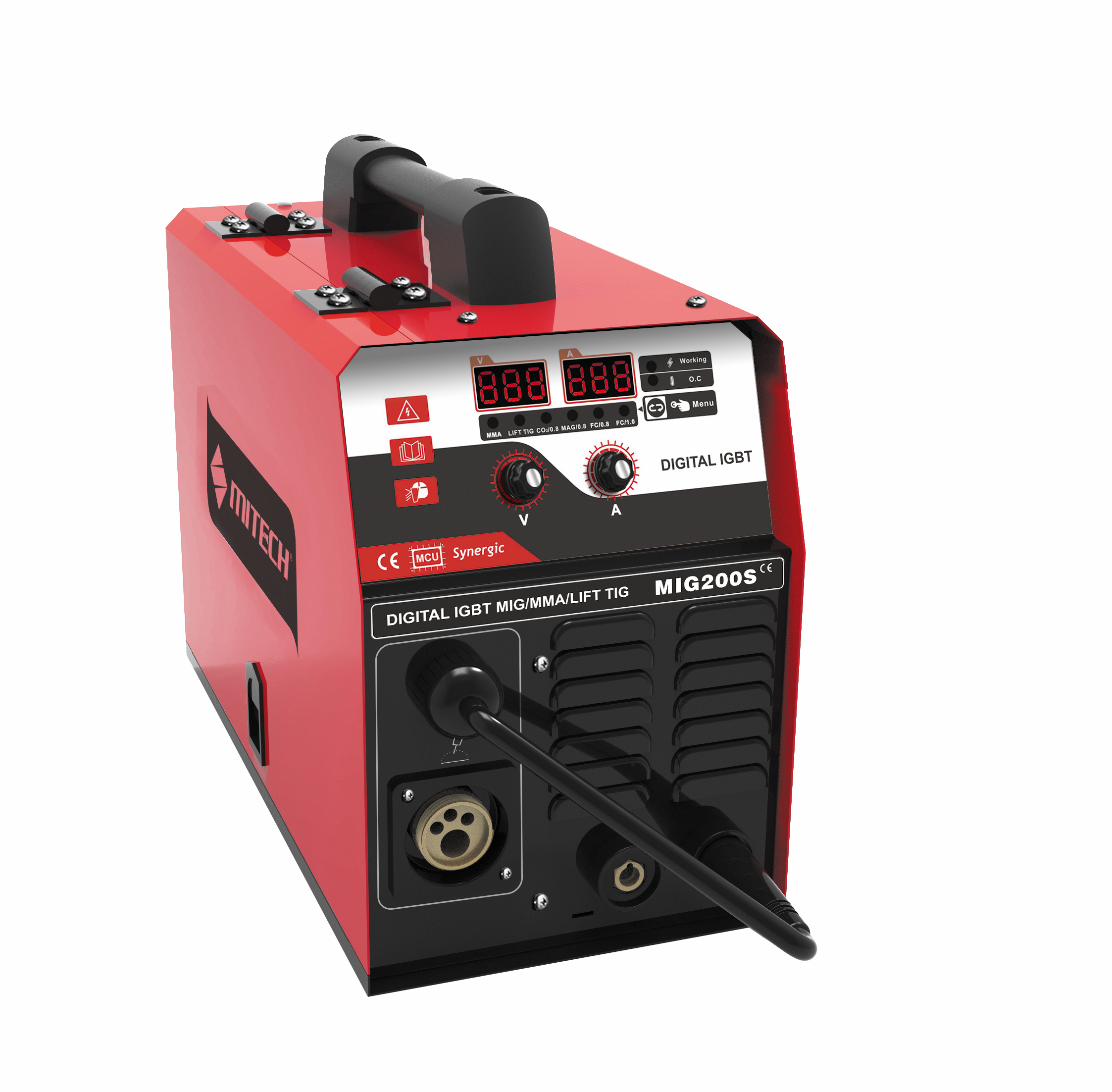

| Model | MIG200S | ||
| Item | MIG | MMA | Lift TIG |
| Input Voltage | AC220V+15% 1PH |
||
| Input voltage frequency(HZ) | 50/60 | ||
| Rated input power capacity(KVA) | 4.5 | 5.4 | 3.3 |
| Rated output volatage(V) | 22 | 26.4 | 16.4 |
| Rated input current(A) | 20.5 | 24.5 | 15 |
| Output current range(A) | 20-160 | 20-160 | 20-160 |
| Arc force adjustment range(10A/1) | |||
| Spot Welding time | |||
| Spot welding interal | |||
| No-load voltage(V) | 52 | ||
| Duty cycle(%) | 60 | ||
| No-load consumption (W) | 60 | ||
| Efficiency（%） | 85 | ||
| Power factor | 0.93 | ||
| Insulation class | F | ||
| Protection class | IP21S | ||
| Spool size(mm) | 200 | ||
| Wire feeding speed | 18m/min | ||
| Weight(KG) | 9.8 | ||
| Diamension(mm) | 400x195x270 | ||
