Advanced color LCD display ensures easier proper machine setup and parameter selection.
Versatile capabilities include Synergic single&double pulse MIG,Stick,Lift-Tig etc.
Compatible spool holder ready for 1KG/5KGS spool .
Offers predefined welding settings for different wire such as Al-Mg,Al-Si,SS,Fe with size 0.8-1.2 to increase the ease of use to ensure the job is done right even for new operators.
Double Pulsed MIG welding delivers higher quality stacked dime appearance.Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework which provides higher efficiency.
Portable body design weighs only 12KGS.

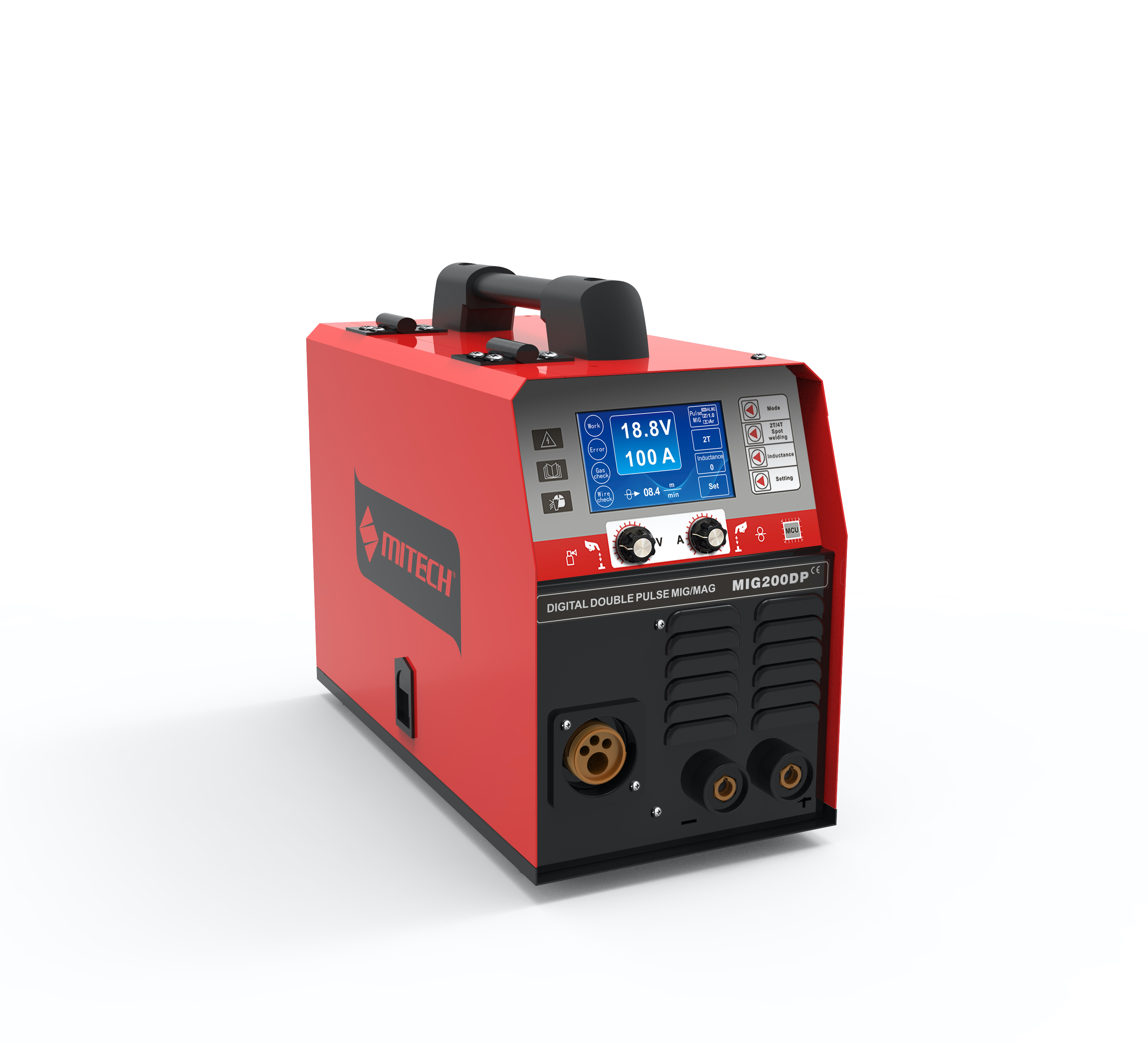

| Model | MIG200DP | |
| Item | MIG | MMA |
| Input Voltage | AC220V+15% 1PH |
|
| Input voltage frequency(HZ) | 50/60 | |
| Rated input power capacity(KVA) | 6 | 7 |
| Rated output volatage(V) | 24 | 28 |
| Rated input current(A) | 27.3 | 31.8 |
| Output current range(A) | 20-200 | 20-200 |
| Arc force adjustment range(10A/1) | ||
| Spot Welding time | ||
| Spot welding interal | ||
| No-load voltage(V) | 62 | |
| Duty cycle(%) | 60 | |
| No-load consumption (W) | 60 | |
| Efficiency（%） | 85 | |
| Power factor | 0.93 | |
| Insulation class | F | |
| Protection class | IP21S | |
| Spool size(mm) | 200 | |
| Wire feeding speed | 18m/min | |
| Weight(KG) | 12 | |
| Diamension(mm) | 400x195x270 | |
