Outstanding welding performance , deep molten puddle, reliable effect.
Portable with light weight make this little stuff can be taken from location to location.
High output current and duty cycle.

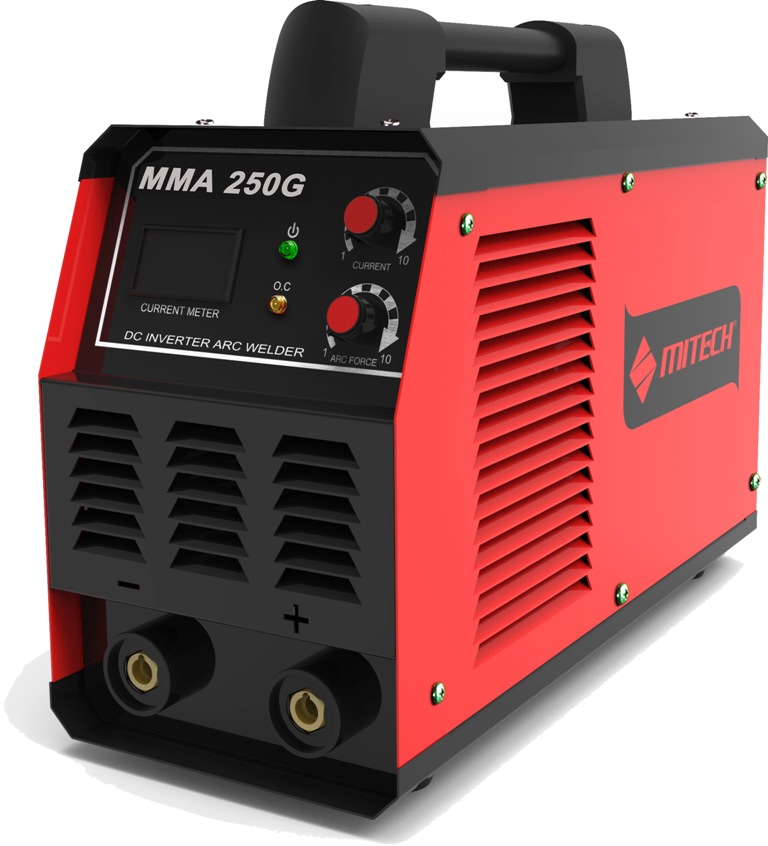

| MODEL | MMA250G |
| Input Voltage | AC220V+15% 1PH |
| Rated input power capacity(KVA) | 6.2 |
| Input voltage frequency(HZ) | 50/60 |
| Rated input current(A) | 28.2 |
| No-load voltage(V) | 55 |
| Output current range(A) | 30-180A |
| Arc force | 0-100 |
| Rated output volatage(V) | 27.2 |
| Duty cycle(%) | 60 |
| Insulation class | F |
| Protection class | IP21S |
| Diameter of rod | 1.6-4.0 |
| Power factor | 0.93 |
| Efficiency（%） | 85 |
| Weight(Kg) | 4.5 |
| Diamension(mm) | 356x153x225 |
