Capable for welding with long cables, up to 100+100 meters and return cables.
Suitable for all types of electrodes including cellulosic.
Smooth and stable arc with minimum spatter.

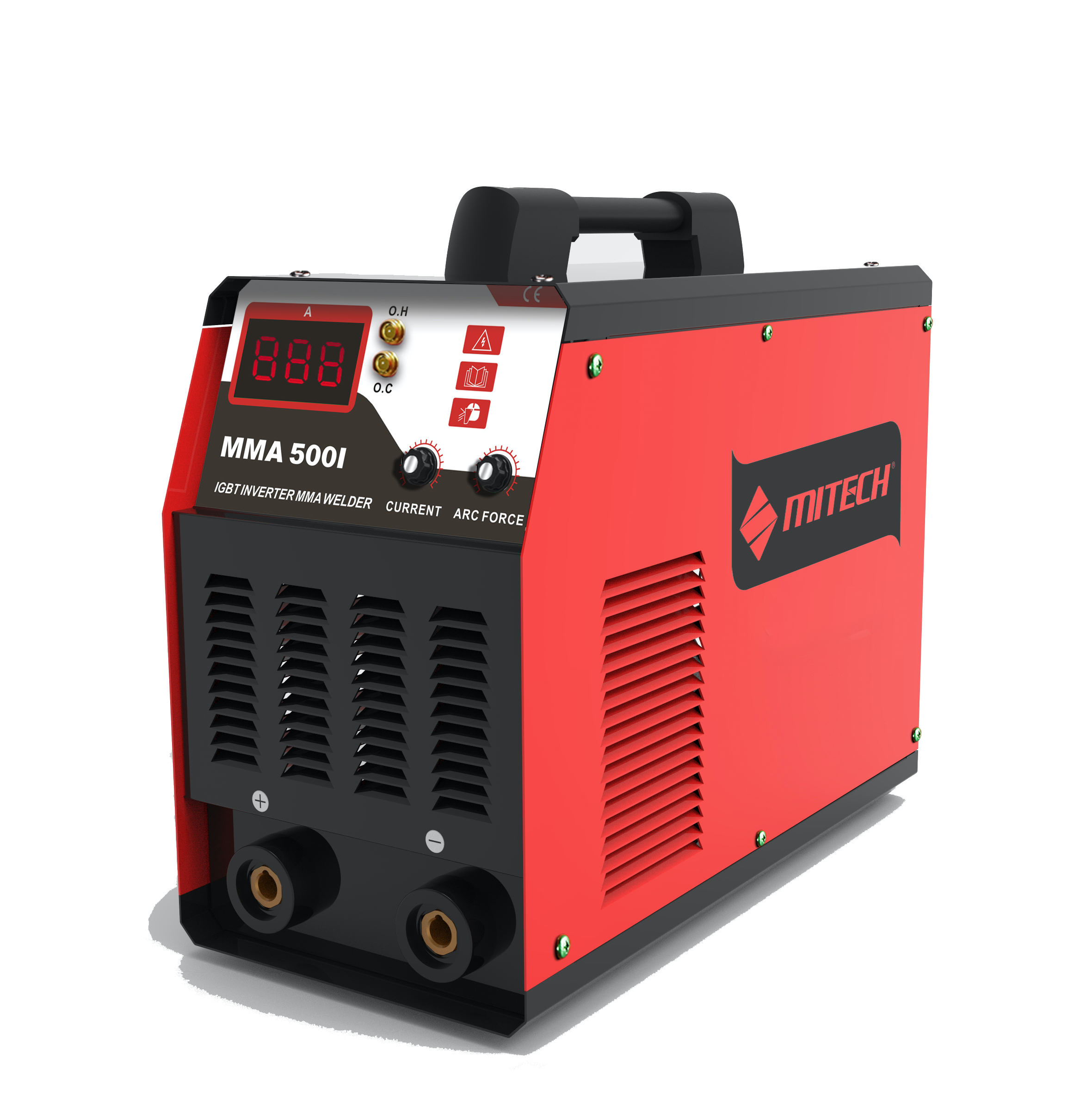

| MODEL | MMA500I |
| Input Voltage | AC380V+15% 3PH |
| Rated input power capacity(KVA) | 18.2 |
| Input voltage frequency(HZ) | 50/60 |
| Rated input current(A) | 27.6 |
| No-load voltage(V) | 67 |
| Output current range(A) | 30-400 |
| Arc force | 0-100 |
| Rated output volatage(V) | 36 |
| Duty cycle(%) | 60 |
| Insulation class | F |
| Protection class | IP21S |
| Diameter of rod | 2.5-5.0 |
| Power factor | 0.93 |
| Efficiency（%） | 85 |
| Weight(KG) | 15.5 |
| Diamension(mm) | 450x220x343 |
