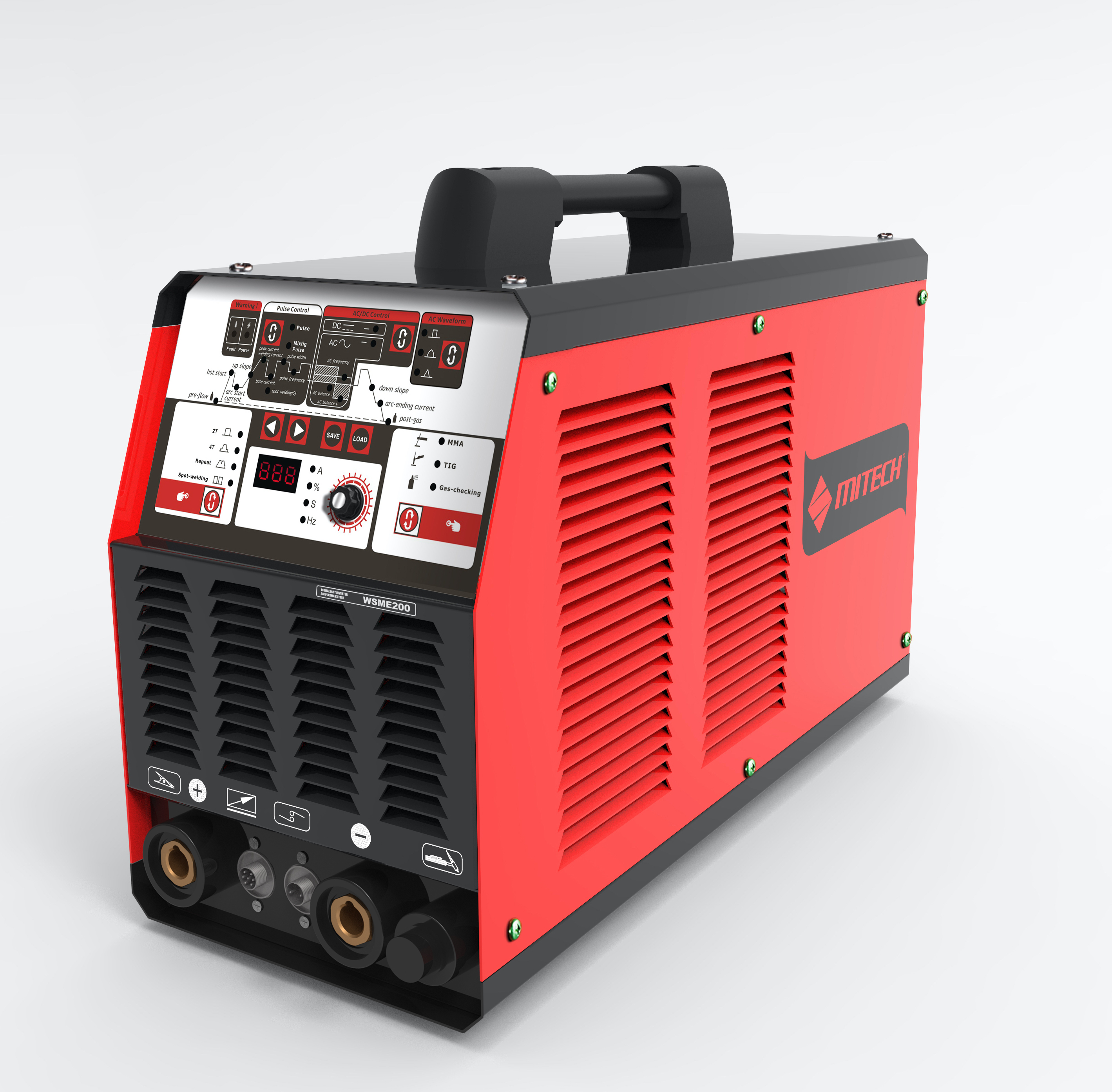

AC/DC TIG/MMA/Pulse 4 in 1, much compact design for hand carry.
Microprocessor control: simple operation ,more perfect welding performance, 10 programs can be stored.
Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds.
The unique air duct design: failure rate greatly reduced, extending the service life of the machine.
Auto-protection against over voltage and under voltage, default phase, against lightning stroke, over current ,over heat etc.
Compatible with network or generator use
Different output wave to fulfill professional welding requirement.
| Model | WSME200 | |
| Item | MMA | TIG |
| Input Voltage | AC220V+15% 1PH |
|
| Rated input power capacity(KVA) | 7 | 4.6 |
| Rated input current (A) | 31.8 | 20.9 |
| No-load voltage(V) | 60 | |
| Output current range(A) | 40-200 | 5-200 |
| Rated output voltage（V) | 28 | 18 |
| Arc force adjustment(A) | ||
| Post-gas time(S) | 0-10 | |
| Pre-flow time (S) | 0-10 | |
| Pulse current(A) | 5-200 | |
| Slope-down time (S) | 0-10 | |
| Pulse frequency (HZ) | 0.1-20 | |
| Pulse width(%) | 10-90 | |
| Welding current(ms) | ||
| Welding interval(ms) | ||
| Duty cycle(%) | 60 | |
| No-load consumption (W) | 60 | |
| Efficiency（%） | 85 | |
| Power factor | 0.93 | |
| Insulation class | F | |
| Weight(KG) | 14 | |
| Diamension(mm) | 480x201x295 | |
