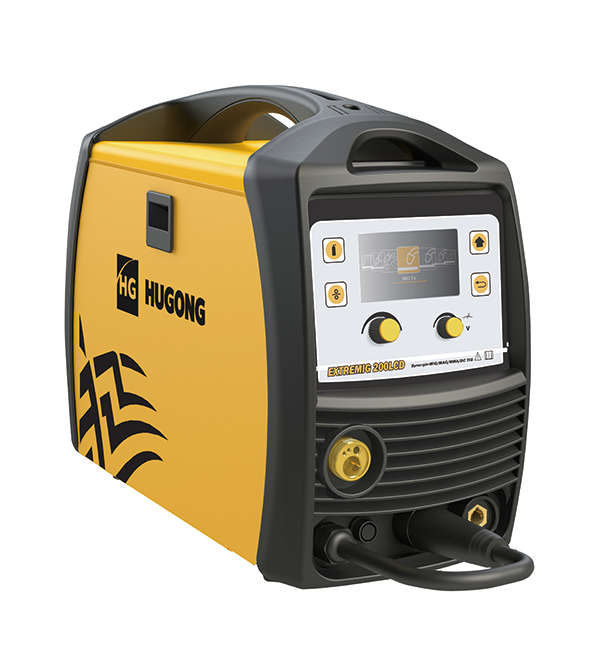

EXTREMIG LCD MIG/MAG(GMAW)
● Portable Multi-Process inverter welder ● Advanced IGBT inverter technology, ● Multiple processes with MIG/STICK/TIG ● Thermal protection ● Stepless wire feeder and voltage seting ● Handles a wide range of wire and electrode for a variety of welding materials

 TECHNICAL PARAMETER

Model EXTREMIG 200LCD EXTREMIG 202LCD
Input Power (V) 230 110/220
Rated Input Current (A) 36 36
Rated Input Capacity (kVA) 8.28 8.28
Rated Open Circuit Voltage(V) 68 65
Welding Current Adjustment Range(A) 30-200 40-90/40-200
Rated Output(A) (20℃) / (40℃) 40%/20%@200 100%/40%@90/40%20%@200
Weight (kg) 23 23
Wire Diameter (mm) 0.6-1.0 0.6-1.0
LxWxH (mm) 530x241x411 530x241x411
