E308L-16 STAINLESS STEEL WELDING ELECTRODE
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Fuermu
Model Number:
FRW-S308(A102)
Diameter:
2.6mm, 3.2mm, 4.0mm, 5.0mm
Length:
35MM, 40MM
Material:
Stainless Steel
Operating Current:
Pls check the production data in the below chart for your reference
Welding Current:
Pls check the production data in the below chart for your reference
Operating Temperature:
Pls check the production data in the below chart for your reference
Application:
Shipbuilding, Bridge, Machinery, general fabrications etc.
color:
Silver
Supply Ability
Supply Ability
300 Ton/Tons per Month
Packaging & Delivery
Packaging Details
2kgs/ box, 10boxes/ctn, 50ctn/ Pattet, MOQ 1 Pallet=1000KGS;
Port
Shanghai, China




Product Description



 Product Description

1.Welding metal: 19Cr-9Ni

2.Excellent welding performance, heat-proof, corrosion resistance.

3.It is suitable to weld 18Cr-8Ni( 304 or 304L), 301, 302 etc stainless steel meterials.

4. Welding Possition: All position



Apllication:

Shipbuilding, Bridge, Machinery, general fabrications etc.





Instruction

1. The oil stains and rust on the welding should be cleared away.

2. Pls use stainless steel brush cleaning bead  to avoid iron mied affacting weld quality.

3. Pls Dry 60 minutes at 250-300°C before welding.

4. Take out a small quantity into 100-150°C drying cylinder, when operation.

5. Do not carry electrode over half-day using quantities.

6.When swing the electrode, swing width should be within 2.5 times of the electrode diameter.

7. Try to keep short arc and low current, in order to reduce creazing and improve toughness.



Chemical Composition of Deposited Metal

  C Mn Si P S Cr Ni
Case 0.052 0.82 0.53 0.018 0.009 18.9 9.8
Standard  ≤0.08 0.5-2.5 ≤0.90 ≤0.04 ≤0.03 18-21.0 9.0-11
(AWS 5.4 E308-16)



   Machanical Properties of Deposited Metal

  Tensile Strength/ Mpa Elongation %
Case 645 41
Standard  ≥550 ≥35
 (AWS 5.4 E308-16)



Reference Welding Parameter ( AC or DC+)

Specification 2.6 3.2 4.0  5.0
( Diameter Size mm)
Amp Flat Position 55-90 90-130 130-190 190-250
Vertical/ Overhead Position 50-90 90-120 130-160  -

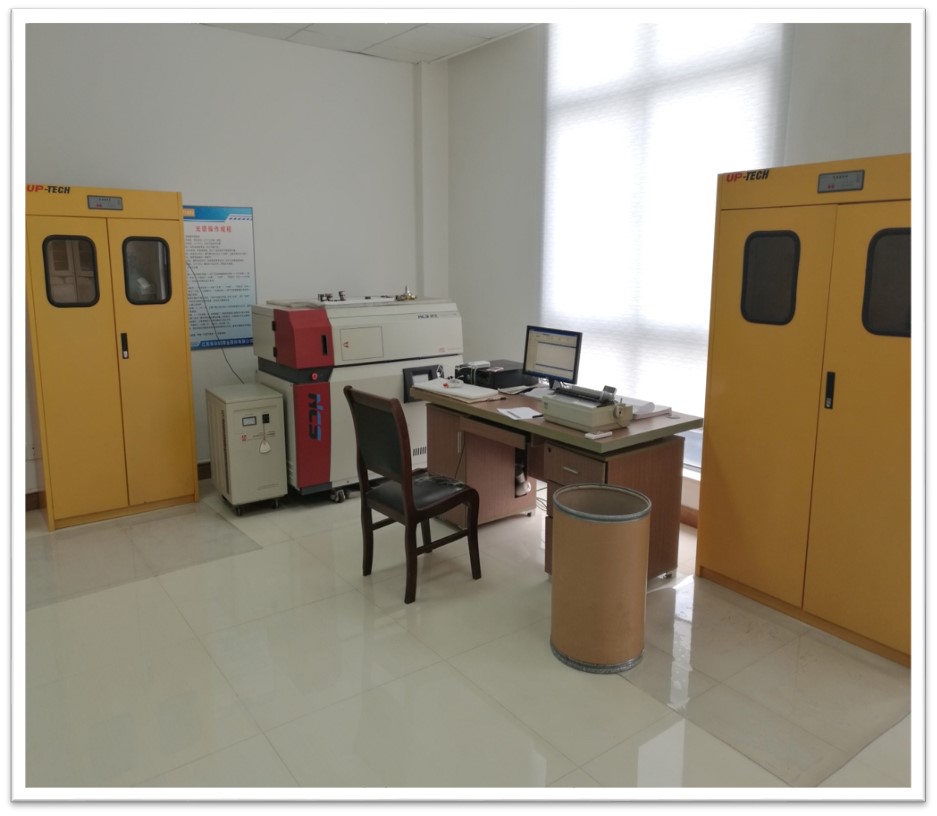

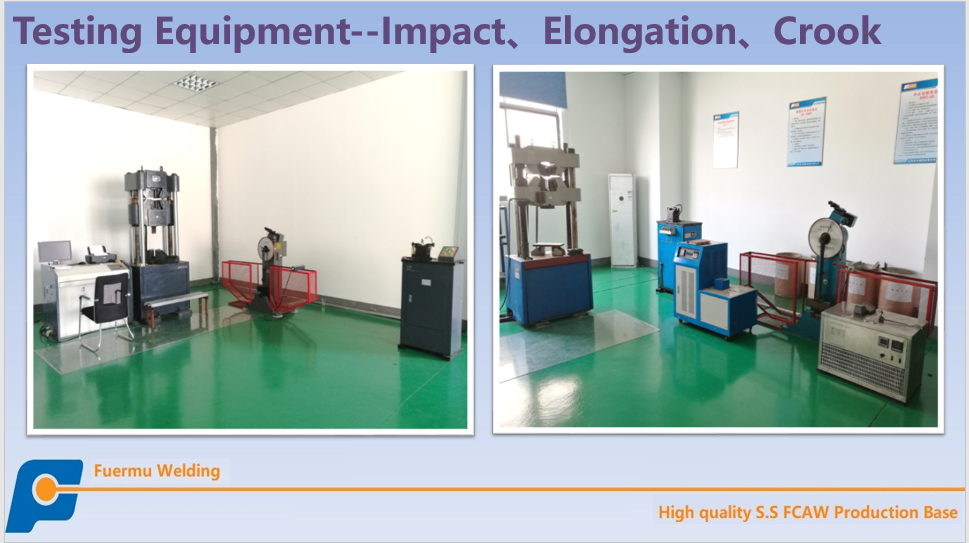

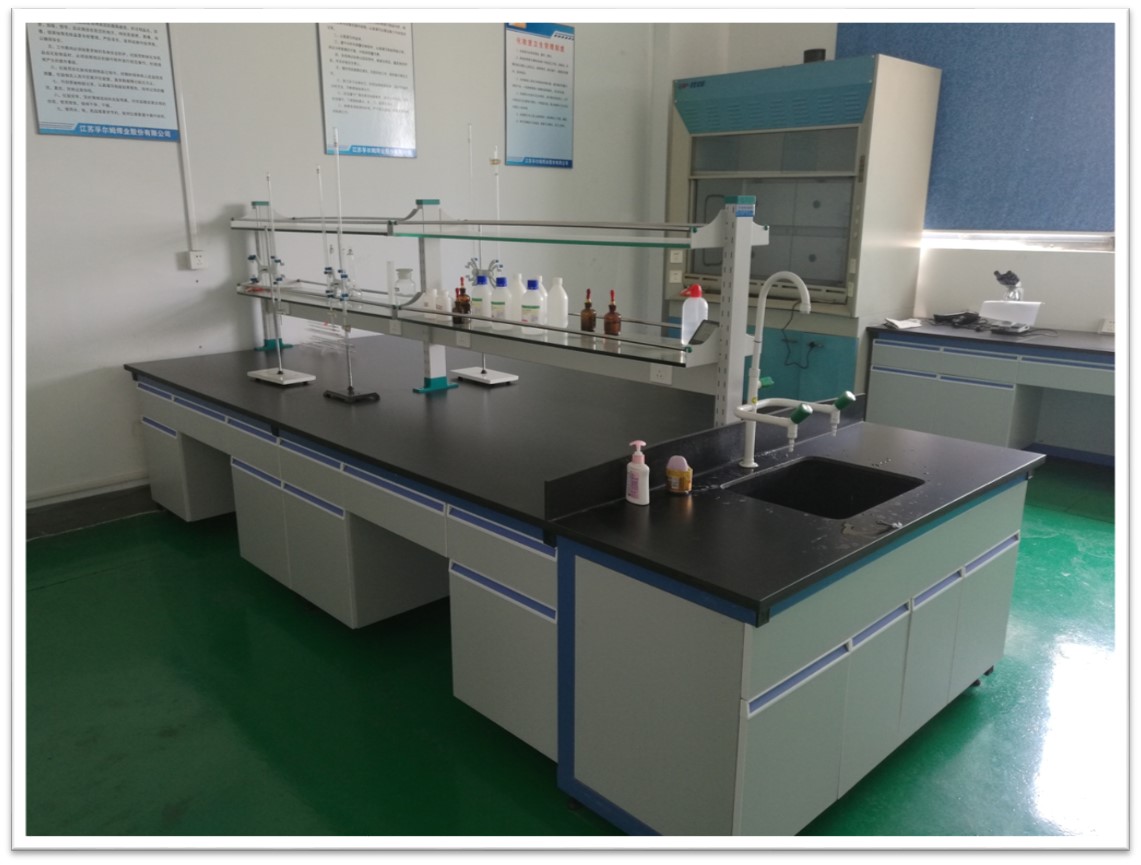

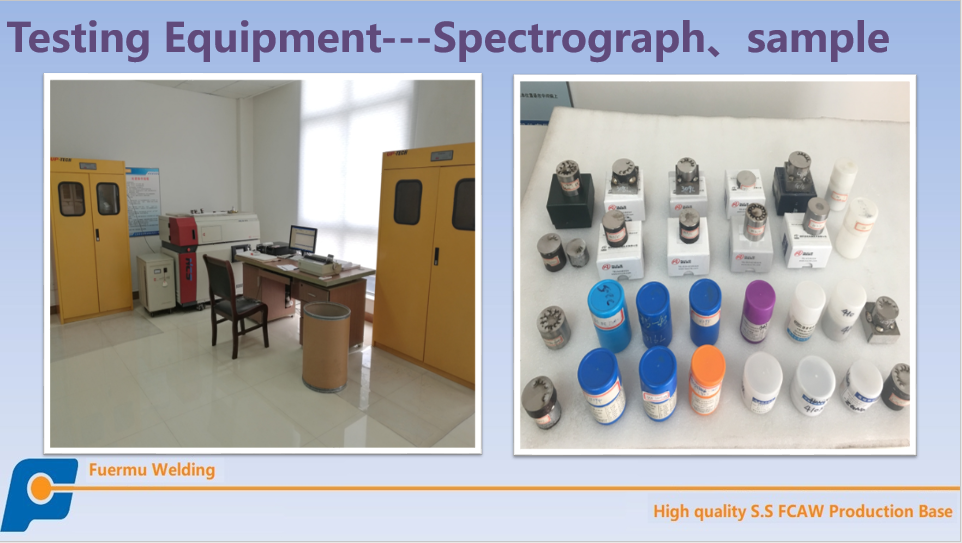

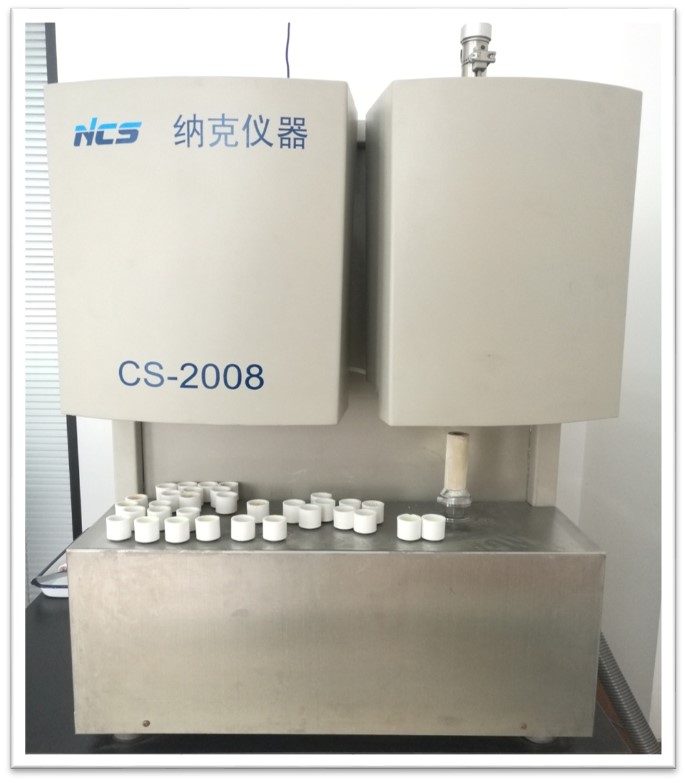

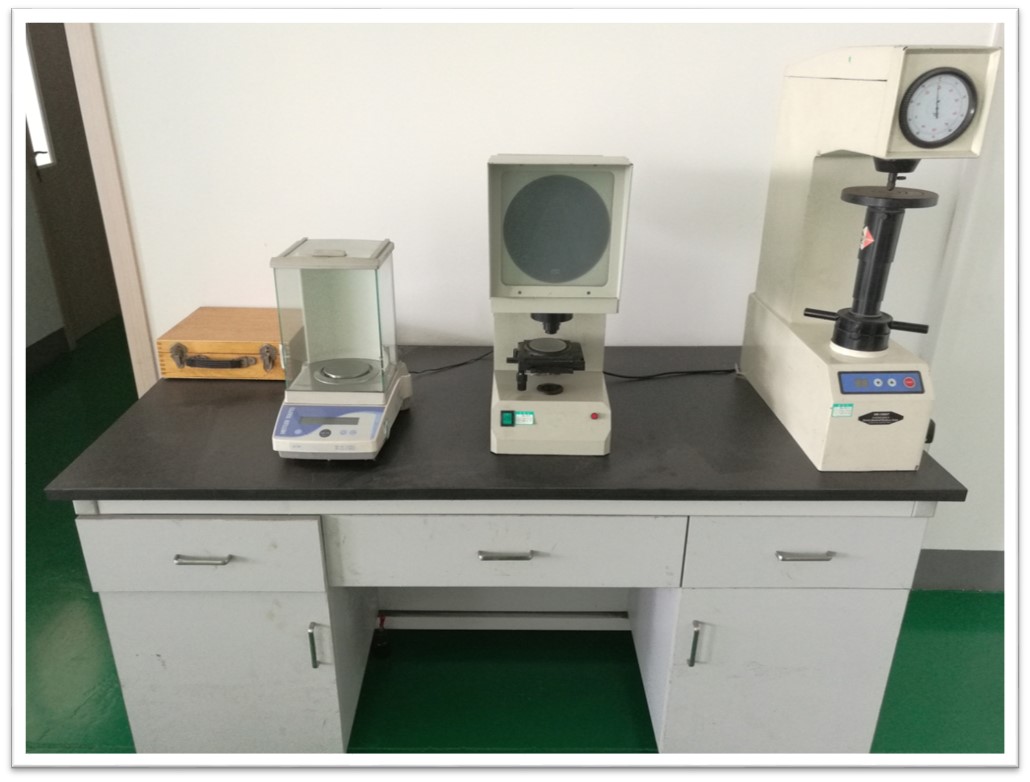

Test Equipment



 E308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODEE308-16 STAINLESS STEEL WELDING ELECTRODE


Packaging & Shipping

   We are looking for the large clients/ Angency/ Distributor, quality and quatity is the first, then price!



 E308-16 STAINLESS STEEL WELDING ELECTRODE













FAQ

Why should choose FUERMU

1) Quality Assurance
FUERMU has been granted the ISO 9001:2008 certification and shiping approvals,

like ABS,LR,BV,GL,DNV,KR,CCS, a global standard for quality management systems.

This ensures that our products are in accordance with approved criteria and safety guidelines.

2) Competitive Price
Coupled with efficient systems, our large numbers of quantity of outpusts and

 logistics enables us to provide you with competitive prices for our products.

3) Reliable
Many China Shipyards select FUERMU as the reliable partner for their shipbuilding,

Like YANGZIJIANG SHIPBUILLDING(HOLDINGS) LTD.,CHINA RONGSHENG HEAVY INDUSTRIES GROUP HOLDING LTD.,

CHENGXI SHIPYARD,and more and more clients signed long term cooperation with us.

4) Flexible Support
Our friendly and experienced staff can provide you with the flexibility in arranging your purchase.

 We can accommodate to special requests to meet your satisfaction

5) Technical Support
We have a well-trained technical team to meet your needs. We will provide you with on-site technical support if necessary.

6) Round the Clock Service
Our round the clock delivery plan will cater to your urgent orders during after-office hours, weekends or public holidays.

7) Prompt Delivery
Our strong producing capacity,transport team and efficient logistics system ensures

that all goods can be delivered on time. Emergency orders can also be arranged and

goods will delivery at the second day.

8) Safety
To meet these stringent criteria, we conduct routine regular checks, weld testing

and machine testing in all our FCAW products.

This ensures that our products meet the strictest requirements before leaving the factory.

9) Large Production capacity of Flux Cored Wire
Our customer base has increased rapidly due to our good reputation over the years.

We continue to invest in a huge number of flux cored wire

so as to prevent shortage of supply during peak projects
