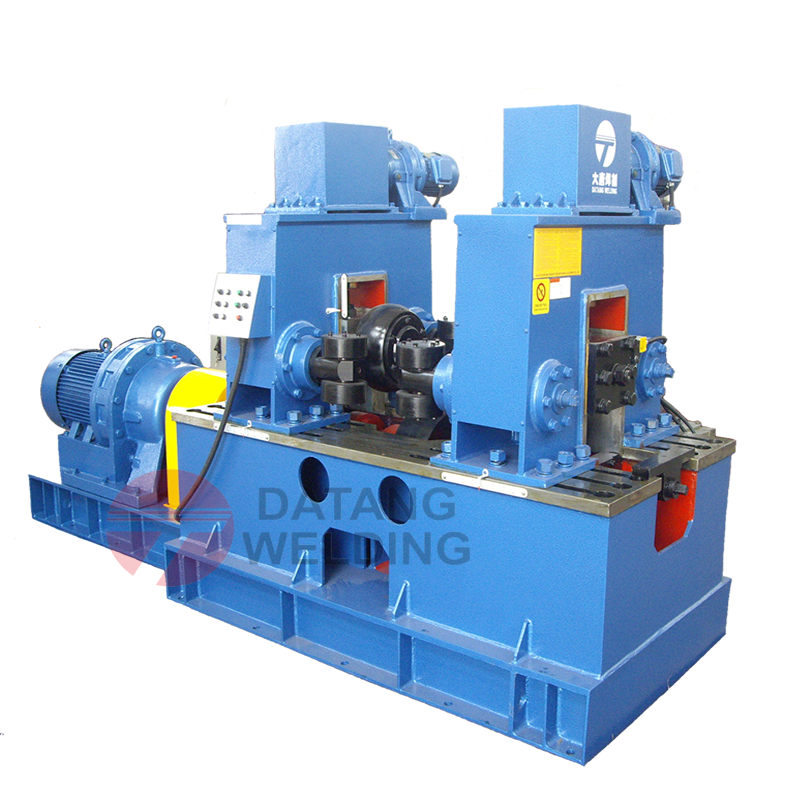

This machine is specially used for the H-beam flange distortion straightening, which has feature of easy operating. High efficiency, reliable working etc.
|
Model |
HYJ-800 |
|
Flange width(mm) |
200-800 |
|
Flange thickness(mm) |
≤40 |
|
Web plate minimum height(mm) |
350 |
|
Material |
Q235A |
|
Straightening speed(mm/min) |
18000 |
|
Power(kw) |
25 |
|
Size(mm) |
3500*1500*1700 |
|
Voltage |
380V-50HZ-3PH |
