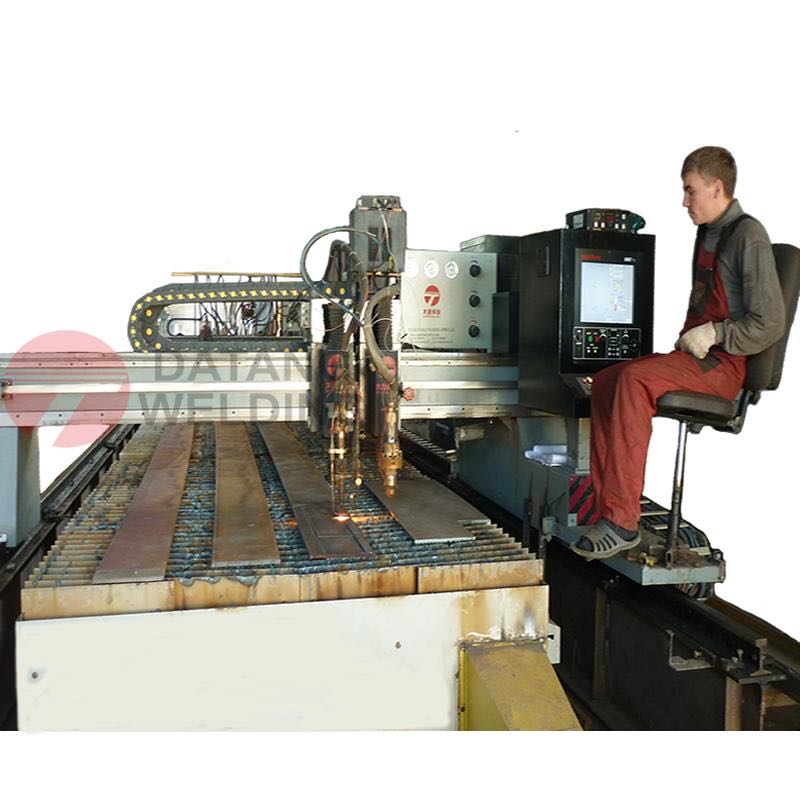

This series of cutting machine is of gantry. All the stricture members are annealed, shot-blasted integrally and painted. Guide-rail in the frame are treated with high-frequency, then ground and paneled together.
The advantage is: Good rigidity, high precision, stable structure and so on. Linear triple-tocvh, infinite-revolving triple torch and plasma torch can be equipped based incustomer requirement. Torch elevation unit it adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hang-type or drag-chain type.
|
Models |
DTCN-4000 |
DTCN-4500 |
DTCN-5000 |
DTCN-5500 |
DTCN-6000 |
|
Rail distance(mm) |
4000 |
4500 |
5000 |
5500 |
6000 |
|
Valid Cutting Width(mm) |
3200 |
3700 |
4200 |
4700 |
5200 |
|
Rail length(mm) |
15000(Can be designed as required) |
||||
|
Valid cutting length(mm) |
12500(Can be designed as required) |
||||
|
Cutting speed(mm/min) |
50-1000(Speed adjust as per thickness) |
||||
|
Back speed(mm/min) |
4000 |
||||
|
Cutting thickness(mm) |
6-100(Single cutting torch 100mm) |
||||
|
Cutting precision(mm/m) |
±0.5 |
||||
|
Roughness of surface |
Ra 12.5-25 |
||||
|
Cutting gas source |
Oxygen and Acetylene or propane |
||||
|
Voltage |
220V-1PH-50HZ (Other voltage can customized) |
||||
